22' x 46' Modern Cabin Plan Overview

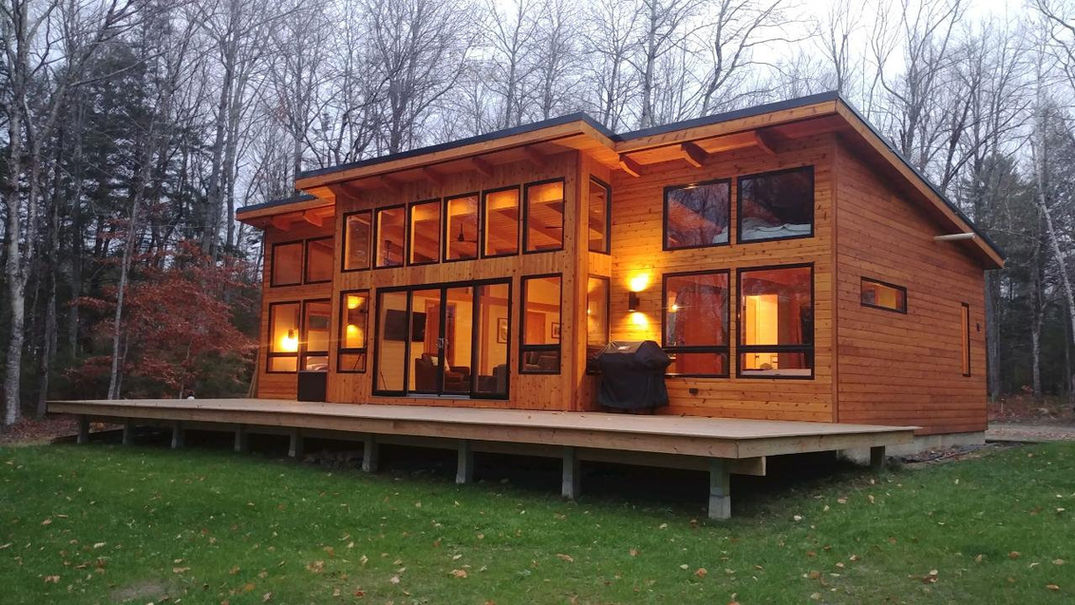

This 22' x 46' cabin with a shed roof uses a modern design with its plethora of doors and windows to really help “bring nature in”. Whether it is next to a lake, like the cabin's name suggests, or perched atop a hillside with a breathtaking view, this cabin allows you to immerse yourself in the beauty that surrounds you. It features a bedroom and a bathroom on each end, with an open kitchen/dining/living space in the middle, which sets up perfectly for a deck off the front running the length of the building. This full plan includes everything to get you started building your dream cabin. We provide all the door and window schedules, architectural elevations, foundation layout, 1st floor framing plan, 1st floor plan, cross section details, frame elevations, timber/fastener/connector list, all wall layouts, beam layouts, rafter layout, fastening details, and all single beam drawings. It uses 8x8 posts and tie beams, 8x14 plate beams, and a mixture of 8x8 and 4x8 rafters. Let us help you get started today with this set of plans!

Building Specifications:
Size: 22' x 46'
Total Square Footage: 1,072
Frame Specifications:
Timbers are 1/2" Under Full Dimension
Joinery: Mortise and Tenon
Posts: 8x8
Plate Beam: 8x14
Tie Beams: 8x8
Rafters: 4x8 and 8x8
Roof: 2 Pitch
Wall Height:
Front: 13'-4 21/32"
Back: 9'-2 21/32"
